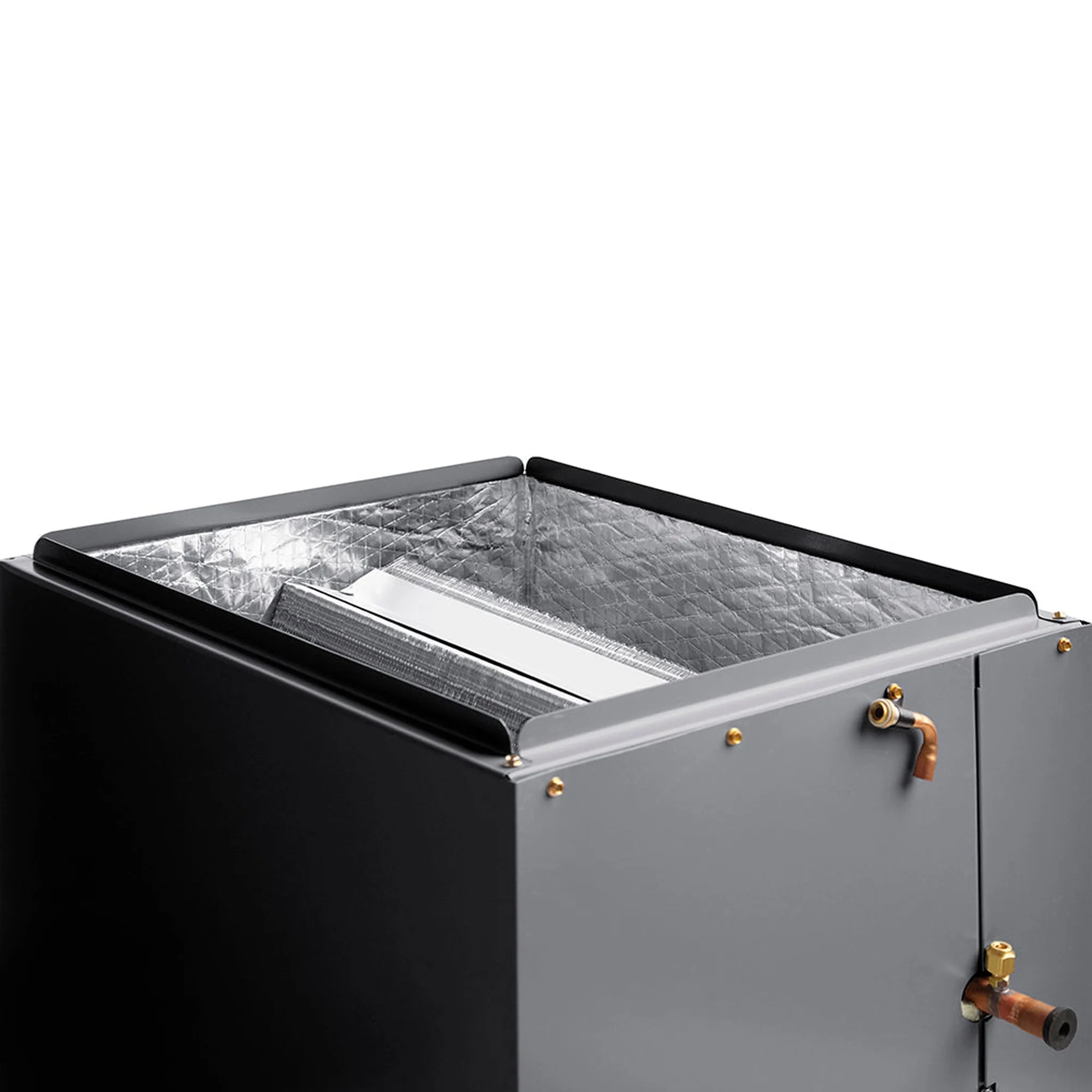

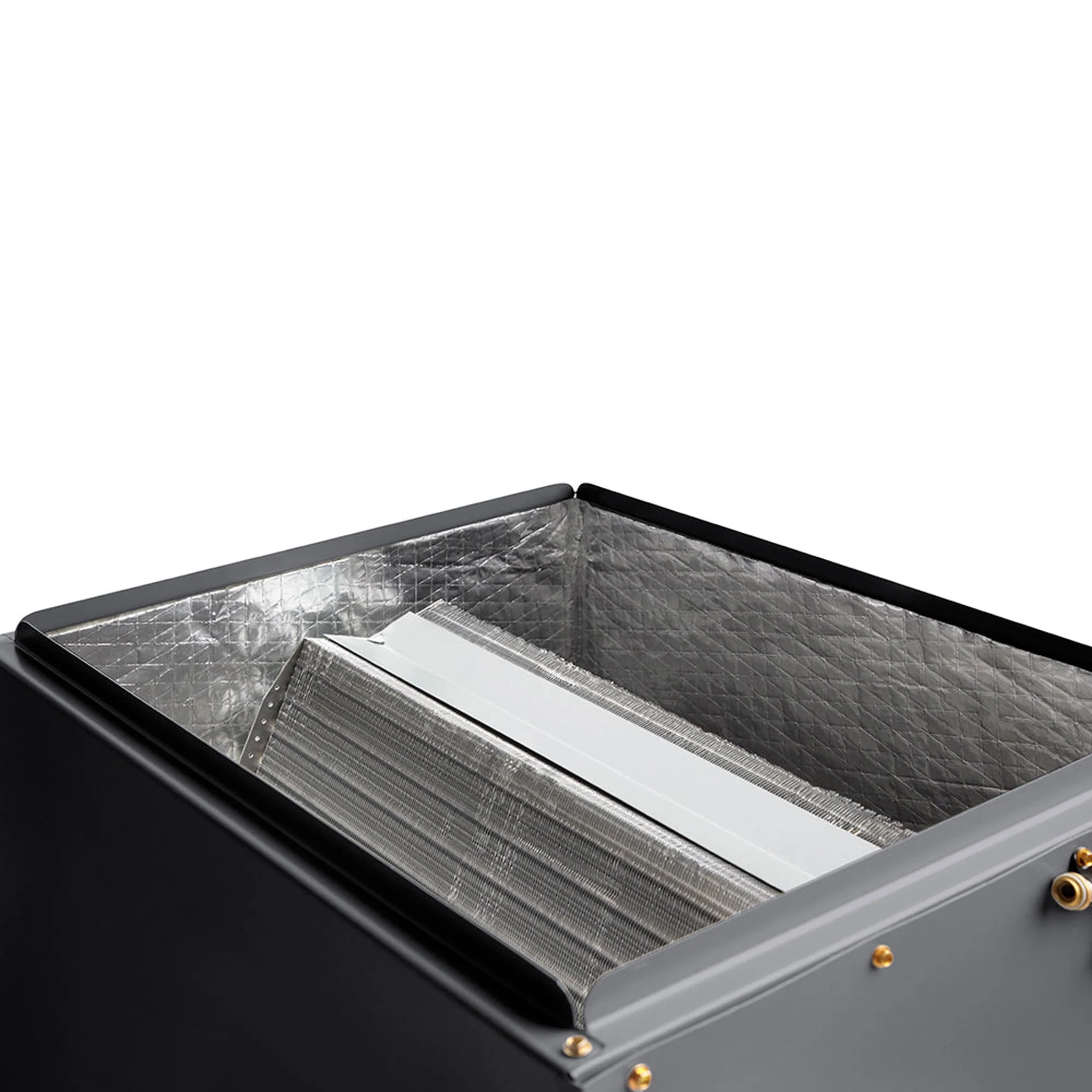

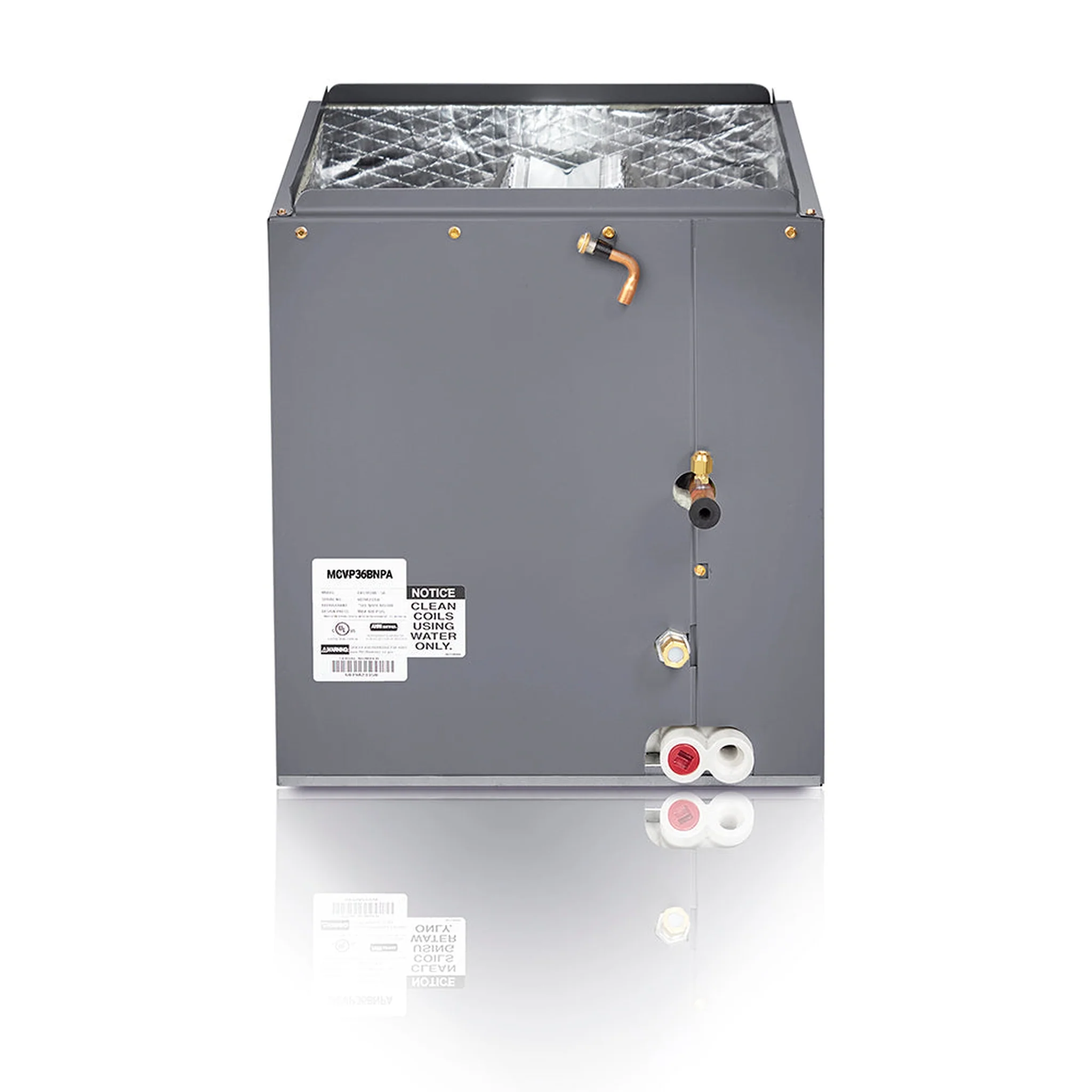

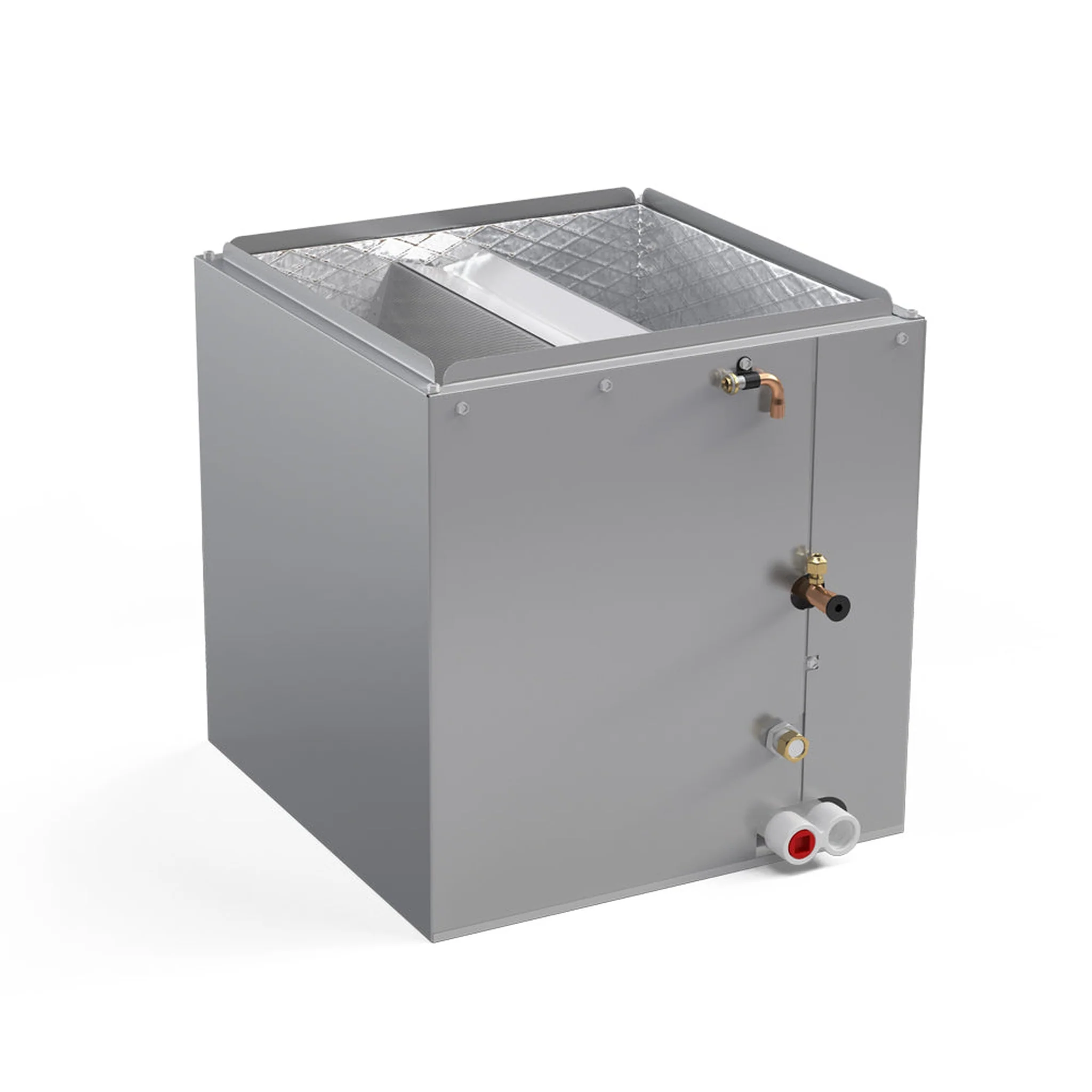

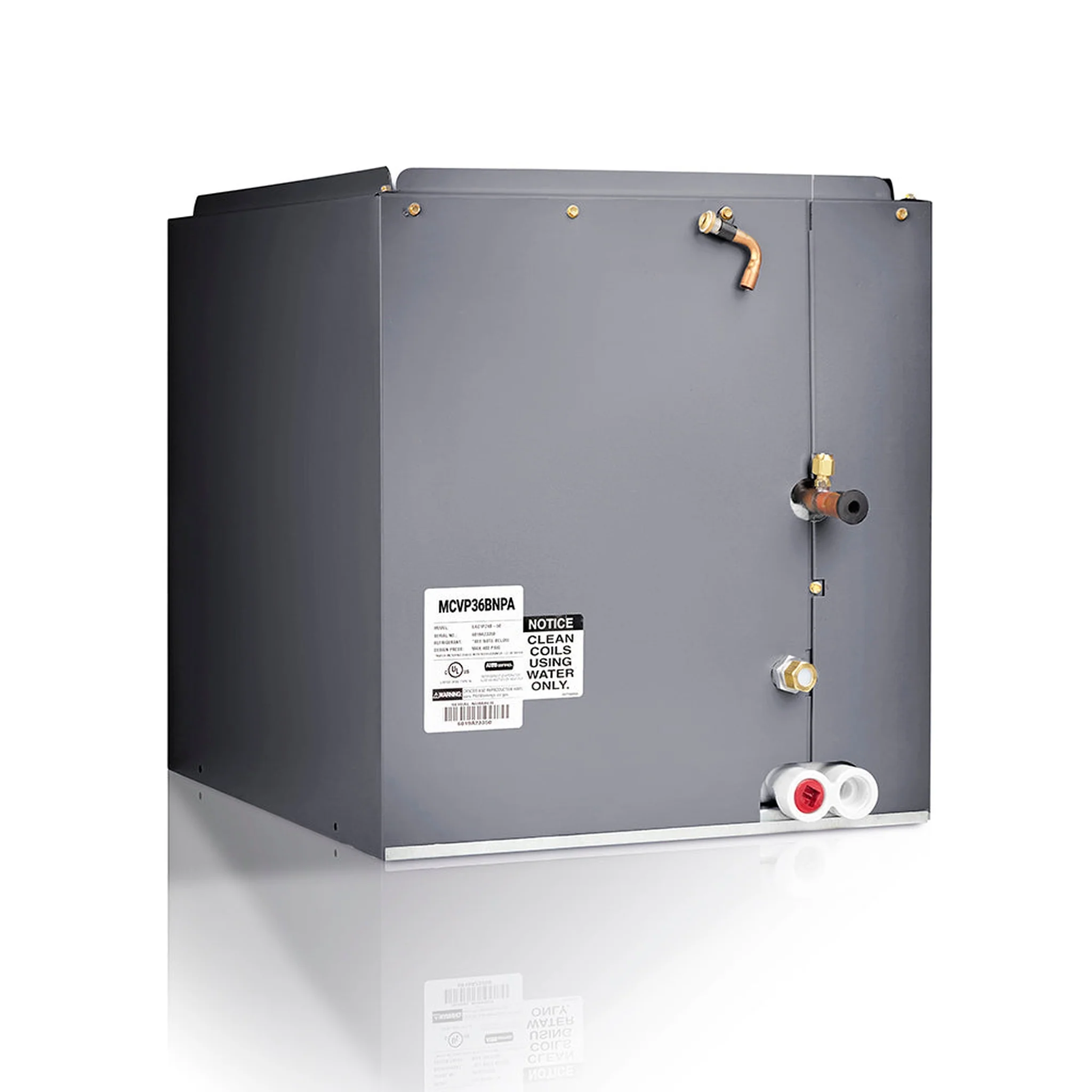

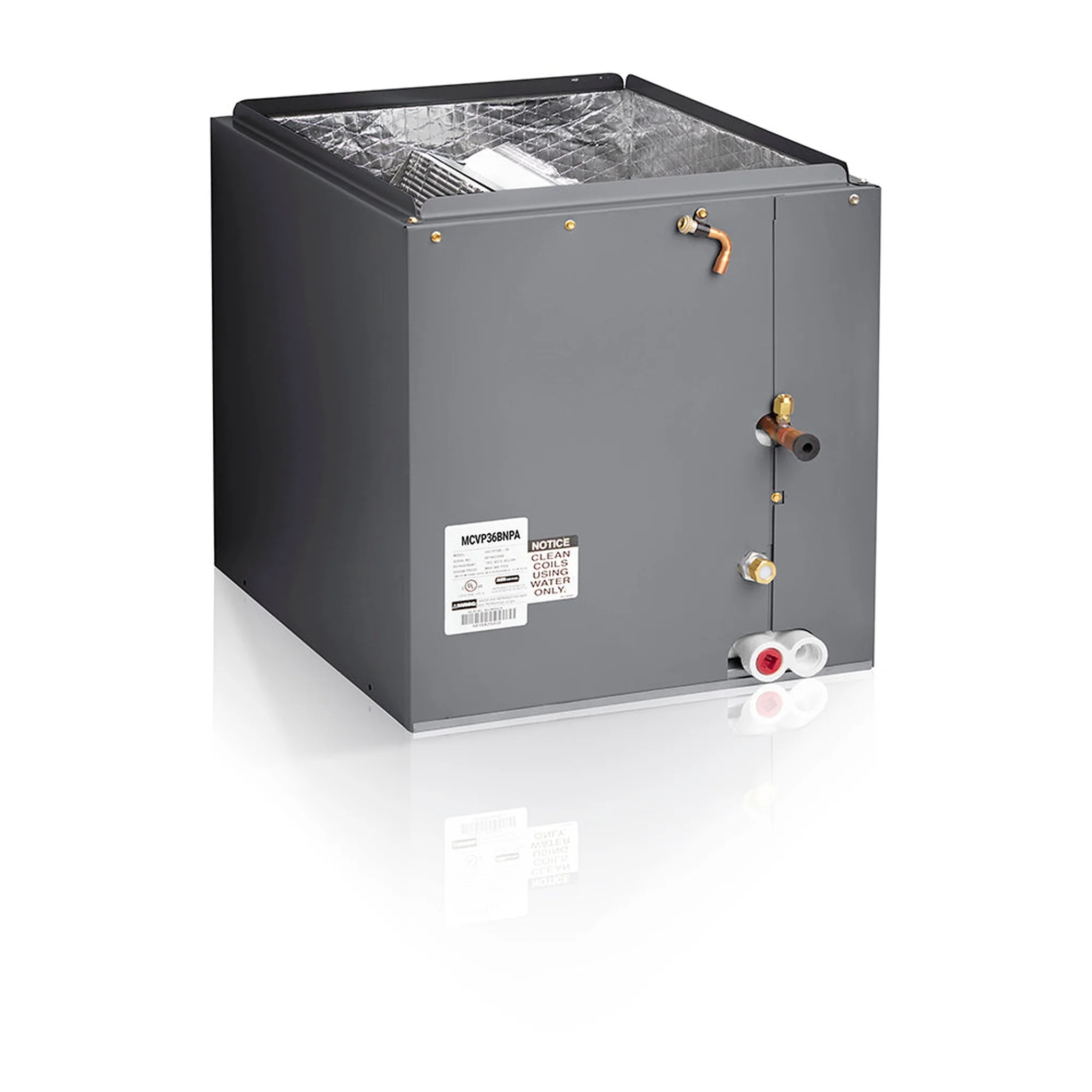

This is the MRCOOL 17.5 Inch 4 Ton R410A Upflow Cased Evaporator Coil, designed for upflow applications, and uses R410A refrigerant. Engineered for both heat pumps and air conditioners, this coil offers a durable and efficient solution for quick, adaptable installations. When combined with a MRCOOL Signature Series condenser and either a gas furnace or modular blower, this coil can achieve efficiency ratings of up to 16 SEER.
Key Features:
- Interlocking door assemblies and secure line seal grommets, which help minimize air leakage.
- UL Listed and AHRI Certified across all units, ensuring high safety and performance standards.
- Industry-leading drain pan with one of the lowest water retention rates, reducing the risk of mold and mildew growth.
- External cabinet-mounted distributor body, designed for swift orifice size changes and fast TXV connections.
- Foil-face insulation, making it easy to clean and maintain.
- UV light-compatible drain pans for enhanced mold control.
- Two dual drain outlets at the front of the coil, offering flexibility in routing drain lines around furnace vents and utility connections.
- Exceptional service access, with tubing conveniently placed at the door split and foil-face insulation for improved maintenance.

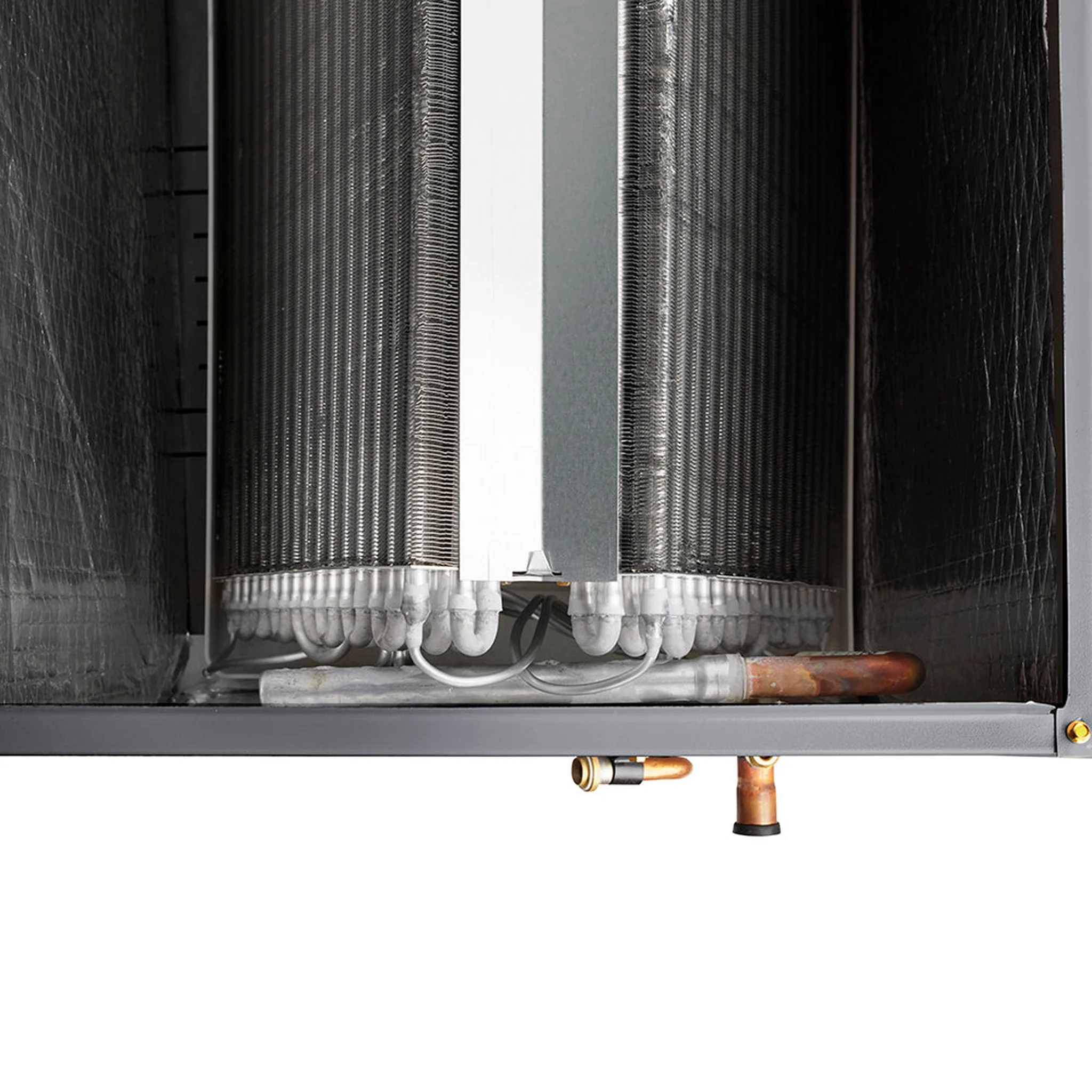

- Constructed with aluminum tubing, hairpins, distributors, and header tubes, alongside copper refrigerant connections, allowing for easy brazing to both liquid and suction lines.
- Conveniently positioned tubing at the door split for simplified coil servicing and cleaning.
- Sealed, painted steel cabinet with wall-to-wall insulation, ensuring less than 2% air leakage for maximum efficiency.
